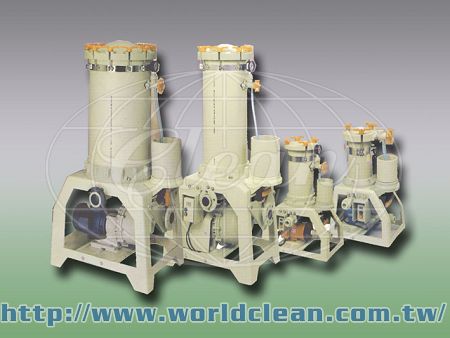

- Excellent application to circulate filter operations for plating liquid, chemical liquid and pure water.
- With magnet drive pump, which can avoid the problems of dry running leakage and environment pollution.
- The filter body is manufactured by high-pressure acid-resistant polypropylene (PP).
- Motor is shielded by protector to avoid being corroded in acid environment.
SPECIFICATION:
Type |
Model |
Filter Material | Filtering Element |
Filtering Area(M2) |
Capacity (L/MIN) |
Applicable |
GML |
15110 |
PP or PVC |
10" x 1 |
0.125 |
15 |
200 |
GML |
30120 |
PP or PVC |
20" x 1 |
0.25 |
30 |
400 |
GML |
60410 |
PP or PVC |
10" x 4 |
0.5 |
60 |
600 |
GML |
80420 |
PP or PVC |
20" x 4 |
1 |
80 |
800 |
GML |
180820 |
PP or PVC |
20" x 8 |
2 |
180 |
1500 |
GML |
220820 |
PP or PVC |
20" x 8 |
2 |
220 |
2500 |
GML |
2201220 |
PP or PVC |
20" x 12 |
3 |
220 |
3300 |
GML |
3301820 |
PP or PVC |
20" x 18 |
4.5 |
330 |
6000 |
Stainless Filter
 |
 |
|
|
Filtering Element
 |
 |
 |
 |
|
|
